When every scan counts, precision cannot be left to chance. The Rockscan TM2038LR delivers razor-sharp results—in record time, from any distance, and even with the most difficult barcodes. It was developed for integrators who don’t want to compromise. The long-range scan engine combines first-class performance at close range with an impressive range of up to 10 meters.
In production lines, mobile computers, or rugged handheld scanners, barcodes must be reliably recognized even under the harshest conditions. However, many standard engines fail when dealing with low-contrast codes or excessive distances. The Rockscan TM2038LR was created to fill this gap and serves as a universal solution for OEM partners who want more control over their scanning performance.
Traditional engines usually offer only two extremes: short range or very expensive “extended range” models. In practice, however, both are often needed. The end user needs a system that works accurately both close up and at a distance.
The Rockscan TM2038LR from WEROCK changes that: it is a completely newly developed scan engine, designed for everyday industrial use. It delivers excellent close-range performance (from 5 cm), reliably reads low-contrast or damaged barcodes, and captures codes at distances of up to 10 m – precisely, quickly, and reliably.
Device manufacturers who use the Rockscan TM2038LR benefit from shorter integration times, greater customer value, and an optimal price-performance ratio. Customers experience scanning that simply works—every time. Internal tests prove that the Rockscan TM2038LR significantly outperforms proven industry models in the near and mid-range while remaining cost-efficient.

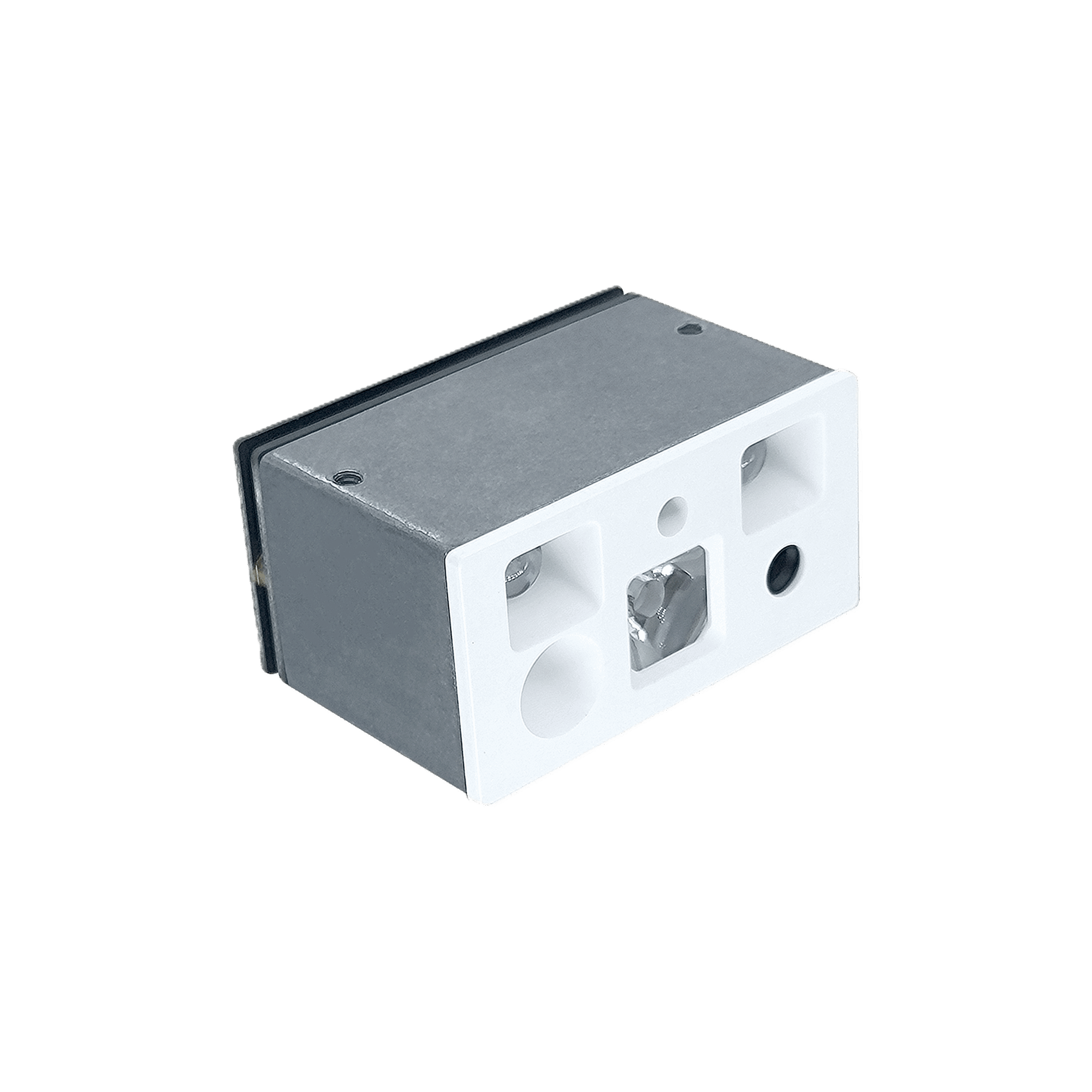

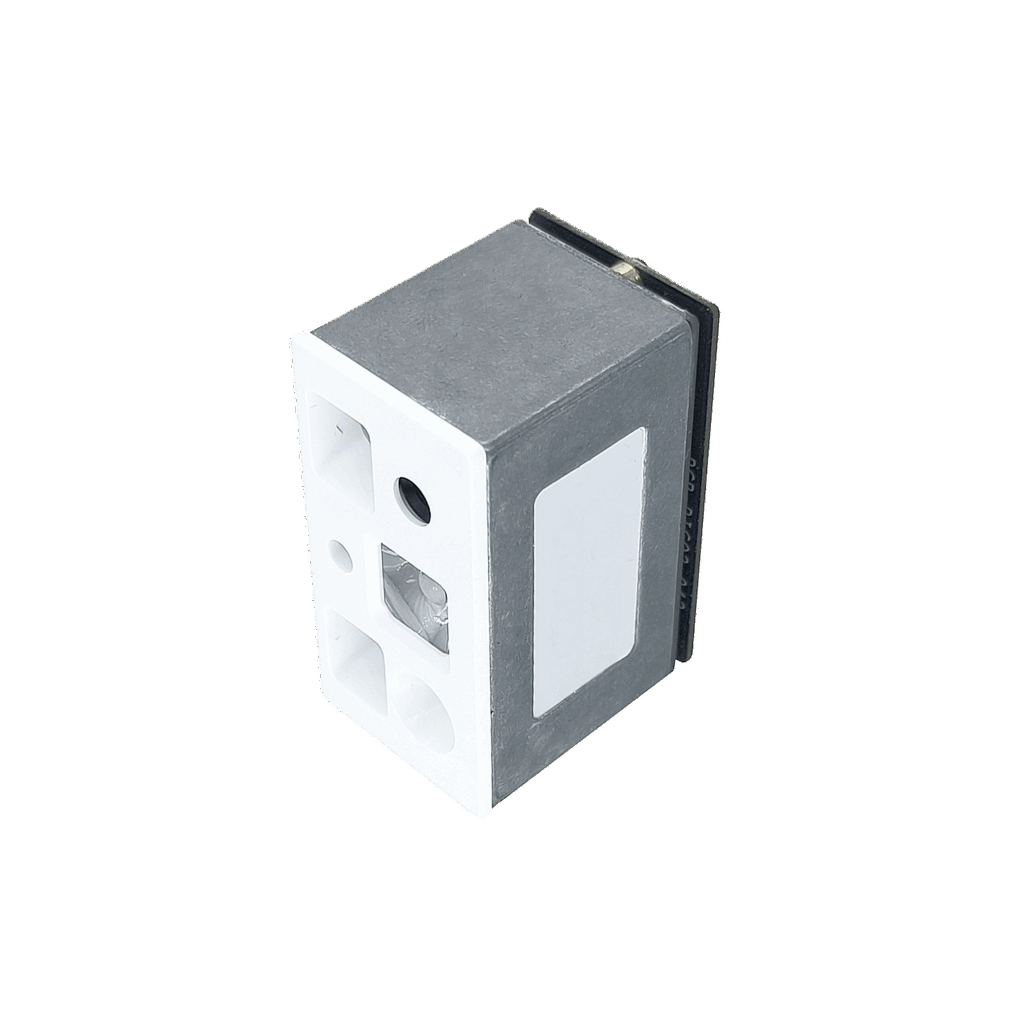

The Rockscan TM2038LR from WEROCK is a compact, powerful 1D/2D scan engine with a dual camera system for great depth of field, high motion tolerance, and excellent contrast performance. Thanks to standardized interfaces, it can be integrated into almost any hardware platform—from handhelds and embedded terminals to robotics systems. The Rockscan TM2038LR is not a compromise between a standard and extended-range engine. It is the practical solution for all scenarios where flexibility, speed, and precision are more important than maximum distance.
Ideal for OEMs, system integrators, and manufacturers of:
| Mechanical properties | |
|---|---|
|
Dimensions |
38 x 27,2 x 19,8 mm |
|
Weight |
32,6 g |
|
Interface |
USB, TTL RS232, USB-COM |
|
Connection |
12-pin ZIF FPC |
| Electrical properties | |
|---|---|
|
Input voltage |
3,3 VDC ±5% |
|
Current consumption |
300 mA (typical, ± 5%), 420 mA (max. ± 5%), <160 mA
(standby) |
| Environmental characteristics | |
|---|---|
|
Operating temperature |
-20°C to +55°C |
|
Storage temperature |
-40°C to +70°C
|
|
Humidity |
Up to 95% non-condensing
|
|
Vibration |
Operational Vibration: 10–150 Hz, 0.5 G, 3 axes, 1 min/
oct, 1 cycle/axis Endurance Vibration: 10–150 Hz, 2 G, 3 axes, 1 min/oct, 20 cycles/axis |
|
Ambient light |
0 to 100,000 lux |
|
Warranty |
24 months |
| Symbologies | |
|---|---|
|
Linear |
Codabar, Code 11, Code 128, Code 2 of 5, Code 32,
Code 39, Code 39 (Full ASCII), Code 93 and 93i,
Composite Code – A/B/C, EAN-13, EAN8, IATA Code 2 of
5, Interleaved 2 of 5, ISBN/ISSN, Matrix 2 of 5, MSI/
Plessey, UCC/EAN128, UK/Plessey, GS1 Databar 14, GS
Databar Expanded, GS Databar Limited, UPC-A, UPC E |
|
2D Stacked |
PDF417, Micro PDF417 |
|
2D Matrix |
Aztec Code, Data Matrix, MaxiCode, QR Code, Micro QR,
Chinese Sensible (HanXin) |
| Safety | |
|---|---|
|
Aiming (Laser) |
EN/IEC 60825-1:2007 (Class 2) |
|
Lighting (red/white) |
IEC 62471 (Photobiological Safety) |
| Performance | |
|---|---|
|
Sensor technology |
Global Shutter |
|
Resolution |
1280 x 1024 (2 Sets) |
|
Scan rate |
120 fps
|
|
Lighting |
White LED (far) Red LED (near) |
|
Aimer |
Green laser dot |
|
Field of view |
Far: 28.0° (V) x 22.0°(H),
Near: 11.5° (V) x 9.0°(H) |
|
Smallest resolution |
5mil 1D |
|
Indicators |
Buzzer, LED |
|
Processor |
Dual-core 1.2 GHz processor |
|
Contrast |
≥15% |
|
Trigger Mode |
Manual, trigger via serial |
| Reading areas | ||
|---|---|---|
|
|
Close range (cm) |
Long range (cm |
|
5 mil Code 39 |
5 |
32 |
|
10 mil Data Matrix |
5 |
33 |
|
10 mil Code 128 |
4,5 |
145 |
|
13 mil UPC/EAN |
5,5 |
190 |
|
20 mil Code 39 |
12 |
265 |
|
20 mil QR |
5,5 |
140 |
|
40 mil Code 128 |
28 |
400 |
|
55 mil Code 39 |
30 |
415 |
|
100 mil Code 39 |
40 |
630 |
|
100 mil Data Matrix |
20 |
410 |
|
200 mil Data Matrix |
100 |
1000 |
The production of electronic devices unavoidably causes greenhouse gas emissions along the process chain. During the production and transport of the Rockscan TM2038LR, all unavoidable greenhouse gas emissions are offset so that you receive a climate-neutral product. In addition, like all WEROCK devices, the Rockscan TM2038LR is designed for durability. The extended lifetime minimizes the need to buy new devices and further reduces the environmental impact.
These non-avoidable emissions are fully and generously offset by Gold Standard projects.
Order Code | Description |
|---|---|
TM2038-XXGDNL0 | Rockscan TM2038 Scan Engine, Green Laser, Dot, Long Range |
