Rockbook X540 G3 Rugged Notebook Front facing view with open lid

Rockbook X540 G3 Rugged Notebook 180° open view

[astra_breadcrumb]

Rockbook X540 G3

Industrial 14” High-Power Rugged Notebook with AI

Powerful Intel® Core™ Ultra processors of the Meteor Lake generation
Intel® AI Boost – Integrated AI-Processor
Designed for harsh environments: Fully ruggedized according to MIL-STD-810H and IP65
Extensive interfaces & seamless communication
Optional outdoor display with a capacitive touchscreen that is visible in sunlight and can be operated with gloves (up to 1,000 cd/m²)

The Rockbook X540 G3 is a rugged laptop for professional use – equipped with a large 14-inch display, high and advanced computing power including artificial intelligence and protected by a fully ruggedized chassis. This ensures more advanced performance and productivity wherever you are.

Request Quotation

Request test device

Test the Rockbook X540 G3 at your premises without obligation! Request your free test device today!

On-the-go performance boost

Boost your productivity on the go and take advantage of the latest technologies with an ultra-rugged laptop equipped with Intel® Core™ Ultra processors from the Meteor Lake generation, including an AI processor, Intel® AI Boost and Arc Graphics. These provide up to 16 cores and 4.8 GHz turbo clock speed for increased speed and efficiency.

With up to 64 GB of RAM, smooth operation is guaranteed at all times, even during more complex processes. A removable high-speed NVMe storage device with a capacity of up to 2 TB is available as a data storage medium. This provides you with sufficient space for the apps, images and documentation that you need for your work. You can use the expansion slot to expand the internal memory by a further storage device for up to 4 TB of total storage.

An excellent user experience

Your new notebook comes with Microsoft Windows 11 Pro to give you the highest performance, best-in-class security and an intuitive user experience. During the development of the Rockbook X540 G3, special attention was paid to ensuring excellent visibility in bright daylight.

The clear and brilliant 14-inch full HD screen offers a sunlight-readable brightness of 1000 nits and is optional with a capacitive, glove-operable multi-touch function. Should you ever find yourself working in the twilight rather than in sunlight, the backlit keyboard is there to support you.

Lightning-fast connectivity

Establish a stable connection wherever your work requires it. The Rockbook X540 G3 scores with comprehensive features and connectivity. Two Gigabit Ethernet ports allow for a secure connection of up to two networks or machines, along with three USB ports and a Thunderbolt 4 port.

With ultra-fast data transfer using Wi-Fi 6 and Bluetooth® 5.2, all data can be synchronized in no time. Even outside the company building, you remain reliably connected with the Rockbook X540 G3 thanks to optional 4G LTE or 5G. A dedicated high-quality GPS module from uBlox helps you with precise location.

Security & Manageability

Strong security is an important factor for businesses – the Rockbook X540 G3 can fully deliver here. In addition to the numerous strong Windows 11 security features, authentication is supported by a fingerprint sensor. If you want to quickly block access to the device, simply press the dedicated button.

For high data security, all storage drives are user-removable. Protection is provided by the integrated Trusted Platform Module (TPM 2.0), which meets the industry standard EAL4+ and enables improved authentication and drive encryption. Some environments can be sensitive, which is why the rugged laptop has a slider that covers the integrated 5-megapixel camera, as well as a switch that quickly terminates all wireless connections.

Durable mobility and compact design

With a thickness of less than five centimeters, a convenient carrying handle and a weight of just 2.94 kg, the Rockbook X540 G3 can be easily taken anywhere. You can work all day without interruption thanks to a hot-swappable battery, without having to connect the laptop to a power outlet. A powerful power adapter ensures that your notebook is quickly recharged.

Built to work as hard as you do

The Rockbook X540 G3 features a rugged, durable chassis that has been thoroughly tested to the US military standard MIL-STD 810H. It works in the cold, rain or when wearing gloves, making multitasking easier even in difficult environments.

Designed for extreme conditions: It is fully protected against water and dust thanks to IP65, as well as being resistant to salt mist and fungal attack. It can withstand temperatures from -20°C to +60°C and falls from a height of up to 1.2 m. The design with a waterproof fan ensures that your laptop stays cool and efficient even during intensive tasks.

Future-proof through AI

Rockbook X540 G3 is more than just a laptop. It offers you a variety of intelligent features thanks to the latest AI technologies and specially developed processors of the latest generation. The integrated Intel® AI Boost offers you, among other things, fast image and video analysis and the automation of routine tasks.

This gives you the option, for example, of analyzing videos and images faster in your production for quality control purposes. The AI helps you to improve error rates in production and logistics or to avoid them almost entirely. The areas of application are very wide-ranging and include predictive maintenance of machines and instruments, process optimization in production and manufacturing, and warehouse management.

Rockbook X540 G3 is compatible with the AI frameworks OpenVINO™, WindowsML, DirectML, ONNX RT and also offers a dedicated Copilot button for direct access to Microsoft’s AI assistant. By pressing this button, you can immediately access artificial intelligence support for your daily work.

Highlights

Rugged notebook for professional use
14” outdoor display with sunlight-readable, optional glove-operable capacitive touchscreen (up to 1,000 cd/m²)
Powerful Intel® Core™ Ultra processors of the Meteor Lake generation
Intel® AI Boost – Integrated AI processor
Intel® Arc™ graphics processor for high graphical requirements
Up to 64 GB DDR5 RAM and 2 TB NVMe SSD
Shock, vibration and drop resistance according to MIL-STD-810H
Ideal for harsh environments, as it is water and dustproof according to IP65
Withstands drops from over 1.2 m
Extended temperature range between -20° C and +60° C
Backlit keyboard with numeric keypad
Thunderbolt 4, USB, 2 x Gigabit Ethernet and RS232 ports
Large hot-swappable battery for uninterrupted work
Dedicated uBlox GPS/GNSS sensor
Seamless connectivity with optional 4G LTE or 5G
2×2 MU-MIMO 802.11ax dual-band Wi-Fi (WiFi 6 certified)
Enhanced enterprise security features with TPM 2.0, Kensington lock slot, removable storage and fingerprint sensor
Includes Windows 11 Pro
CO2 emissions from production and logistics fully offset

Technical Specifications

Physical characteristics
Enclosure	Robust plastic housing with carrying handle and edge protection, cooling by IP65 fan, Kensington Lock
Dimensions	363 x 287 x 42 mm
Weight	2,99 kg
Battery	Removable 11.55 V / 4850 mAh (56 Wh) lithium-ion battery, internal battery 11.1 V / 1300 mAh (14.4 Wh), lithium-ion battery, hot-swappable, runtime up to 8 hours
Input voltage	19 V DC / 3,78 A (72 Watt)
Buttons	Power button, Reset button, Screen lock, RF-Button, Copilot Button, White backlit keyboard with numeric keypad (different layouts available)
Status indicators	Power LED, Charging LED, Caps Lock LED, Flight Mode LED, Camera LED
Operating temperature	-20° C – +60° C
Storage temperature	-30° C – +70° C
Humidity	95%, non-condensing
Sealing	IP65 dust and waterproof
Vibrations	MIL-STD-810G 514.7
Drop resistance	1.2 m according to MIL-STD-810H

System features
Operating system	Microsoft Windows 11 Pro
Processor options	■ Intel® Core™ Ultra 5 125H Processor (4 P-Core, 8-E-Core, 2 LPE-Core) max. 4,5 GHz, 18 MB Smart Cache ■ Intel® Core™ Ultra 7 155H Processor (6 P-Core, 8-E-Core, 2 LPE-Core) max. 4,8 GHz, 24 MB Smart Cache
Graphics processor	■ Intel® Arc™ Graphic
AI Processor	■ Intel® AI Boost
Storage	256, 512 GB, 1 TB or 2 TB NVMe SSD, second hard disk via expansion slot (NVMe M.2 2280)
RAM	Up to 64 MB DDR5 RAM
I/O	1 x USB 3.2, 1 x USB 3.0, 1 x USB 2.0, 1 x Thunderbolt 4, 1 x 3,5 mm Headset, 1 x HDMI 2.0a mini, 1 x RS232, 2 x RJ45, DC-Input

Display
Display	14“ IPS LCD-Display, 16:9, 1000 cd/m2 brightness, 1920×1080 pixel resolution
Touchscreen	■ Capacitive multi-touchscreen with 10 touch points, Corning Gorilla Glass 3 , Operable with gloves ■ No touchscreen, matt protective glass

Communication
WLAN	Intel® AX200 Wi-Fi 6, 802.11 a/b/g/n/ac/ax
WWAN*	■ 4G LTE (Category 4 max. 150 MBit Download / 50 MBit Upload), LTE FDD: B1/B3/B5/B7/B8/B20/B28A LTE TDD: B38/B40/B41 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900MHz ■ Sub-6GHz & mmWave 5G ■ Max. Transmission rates 4.0 Gbps (DL) / 1.4Gbps (UL) ■ Worldwide 5G and LTE-A coverage ■ Support for NSA and SA modes ■ Frequency bands: 5G NR NSA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ 2571/ 2581/260 ① / 261 ① SA: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 LTE-TDD: B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 LAA B46 UMTS WCDMA B1/ 2/ 4/ 5/ 8/ 19
Bluetooth	Bluetooth® 5.2 BLE
Ethernet	2 x RJ45 10/100/1000 Mbit/s LAN

Multimedia
Audio	2 x Loudspeaker, 1 x Microphone, Headset connector
Camera	5 MP Front camera with activity LED and Security Lock slider

Data acquisition
NFC*	ISO/IEC 14443 A/B, Conformity with IEC 15693/18092, FeliCa, Mifare 1K/4K, NFC Forum tag (Mifare Ultralight, Jewel, Open FeliCa, DESFire), NFCIP-1/2, I2C interface
Position detection	uBlox NEO-7M GPS/GNSS receiver (GPS/QZSS, GLONASS)

Further specifications
CPU-supported AI software frameworks	OpenVINO™, WindowsML, ONNX RT
AI functions	Sparsity-Support, Support for Windows Studio-Effects
Innovative Features	DirectX 12.2, Adaptix™ Technologie, Deep Learning Boost, Flex-Memory-Access, Gaussian and neural accelerator 3.5, High Definition Audio, Hyper-Threading-Technik, Image Processing Unit 6.0, Quick-Sync-Video , Smart Sound Technologie, Speed Shift Technology, SSE4.1, SSE4.2, AVX2, Thread Director, Turbo Boost Max-Technic 3.0³, Volume Management Device (VMD), Wake on Voice, OpenCL 3.0, OpenGL 4.6, Raytracing, Thermal-Monitoring-Technology
Security Features	AES New Instructions, Boot Guard, Control-Flow Enforcement Technology, Directed-I/O-Virtualization Technology (VT-d), Suitability for the Intel® Hardware Shield, Execute-Disable-Bit, Kensington connector, Mode-based Execute Control (MBEC), OS Guard, Secure Key, Standard Manageability (ISM), Threat Detection Technology (TDT), TPM 2. 0, Trusted Execution Technology, Virtualization Technology (VT-x), VT-x with Extended Page Tables (EPT), Windows Hello login via fingerprint sensor

Others
Included accessories	Power supply unit
Optional accessories	See accessories catalog
Warranty	2 year warranty, extended warranty available

* = Optional

Please note that a minimum purchase quantity is required for certain configurations. We will be happy to advise you on this – please write to us at [email protected].

Sustainability

The production of electronic devices unavoidably causes greenhouse gas emissions along the process chain. During the production and transport of the Rockbook X540 G3, all unavoidable greenhouse gas emissions are offset so that you receive a climate-neutral product. In addition, like all WEROCK devices, the Rockbook X540 G3 is designed for durability. The extended lifetime minimizes the need to buy new devices and further reduces the environmental impact.

The production of the Rockbook X540 G3 causes 426 kg of CO2e emissions.

These non-avoidable emissions are fully and generously offset by Gold Standard projects.

Downloads

Rockbook X540 G3 Datasheet (German)

Rockbook X540 G3 Datasheet (English)

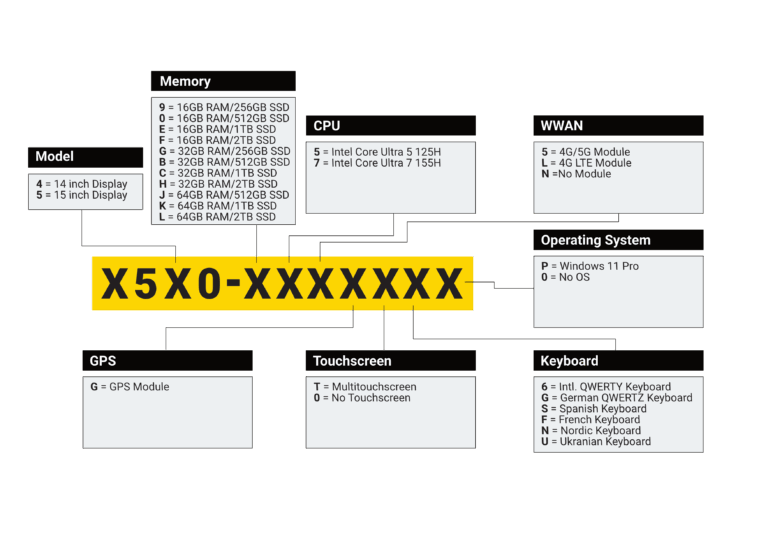

Configurations
